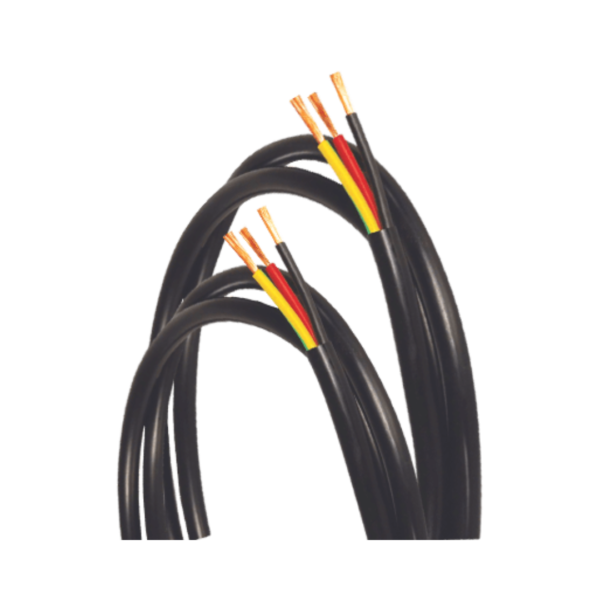

SINGLE CORE / MULTICORE FLEXIBLE CABLES

Features

These wires are manufactured from bright-annealed 99.97% pure bare copper conductors and hence, offer low conductor resistance. The sheathing is provided with a specially formulated PVC compound to facilitate not only ease in stripping but also to withstand all kinds of mechanical abrasion while in use. PVC compounds used for insulation and sheathing have a high oxygen and temperature index & these properties help in restricting the spread of fire.

Cable Structure

Single Core Flexibles

FR FRLS ZHFR
Type of Insulation 70°C/105°C Heat Resistant PVC Flame Retardant Low Smoke (FRLS) Halogen Free (HFFR) From 1.0 to 4.0 Sq.mm.
Typical Applications Wiring of panels for use in high ambient temperature Wiring in High density critical installations in public places and fire prone areas Wiring in high density critical installations in public places and vicinity of electronic systems
Applicable Standards IS-694, BS 6004, IEC 60227, DIN VDE-0281-3 IEC 60332-1, BS 4066-1, EIC-60754-1, ASTMD-2843, ASTMD-2863 IEC 60332-1&3, BS 4066-1&3, IEC 60754-1&2, ASTMD-2863, BS 7211, DIN VDE-0282-9

Multicore Flexibles

Type of Insulation Type of Sheathing Applicable Standards Typical Applications
Standard PVC Standard PVC, HRPVC IS 694, BS 6500, IEC 60227, DIN VDE-0281 Power Cords for appliance, temporary power supplies, 3 core flat cables are suitable for submersible pump applications.
Heat Resistant PVC up to 105°C Standard PVC, HRPVC IS 694, BS 6500, IEC 60227, DIN VDE-0281 Hi-power appliances, ovens, temporary power supply in higher temperature areas.
Standard PVC of FRLS FRLS (Flame Retardant Low Smoke) IS 694, BS 6500, IEC 60227, DIN VDE-0281, IEC 60754-1, IEC 60332-1, BS-4066-1, ASTMD 2843, ASTMD-2863 Power cords for application used in fire prone areas, flame proof equipment’s, machine tools used in critical locations and heat zones.
Category:
Get Quote

Introduction

KEI Single & Multicore Flexible Copper Cable are used in low voltage signals, electrical motors, electrical appliances, control panels, DC power transformers, electrical boards, battery cables etc.

These cables are highly flexible in construction & designed with high Di-electric strength.

KEI Single & Multicore Flexible Copper Cable are having high degree of thermal stability, Oxygen & temperature index. These cables retard its spread in the unlikely event of fire felicitating rescue operation.
